SPECIFICATONS | |
POWER | |

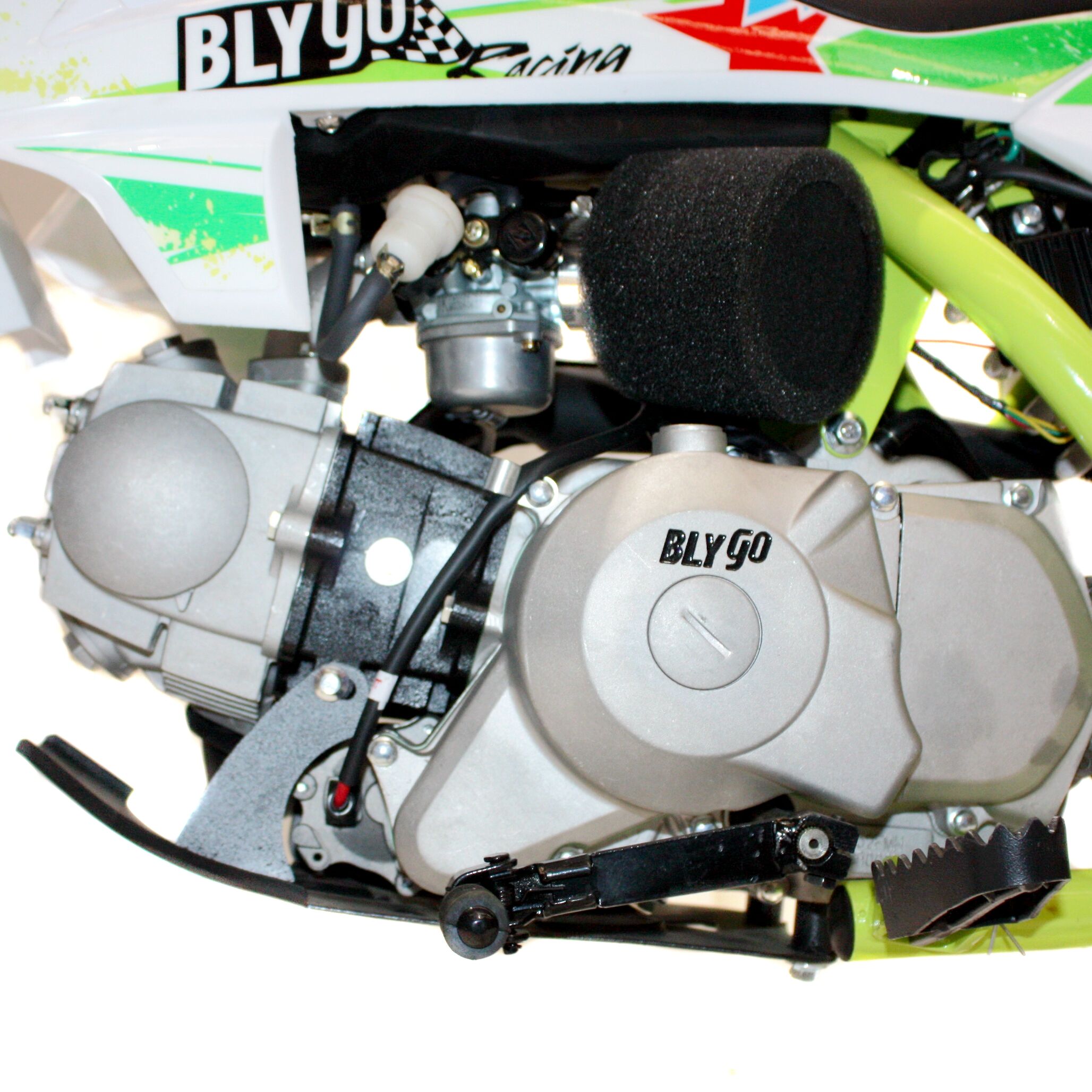

Engine Type | 110CC, Single Cylinder, 4-Stroke, Air Cooled |
Displacement | 107 ml |
Bore x Stroke | Ф52.4×49.5mm |
Max Power | 5.0/8000±500 kw/r/min |
Max Torque | 7.5/5500±500 N.m/r/min |
Compression Ratio | 9.0:1 |
Shift Type | Semi-Auto Clutch, N-1-2-3-4 |

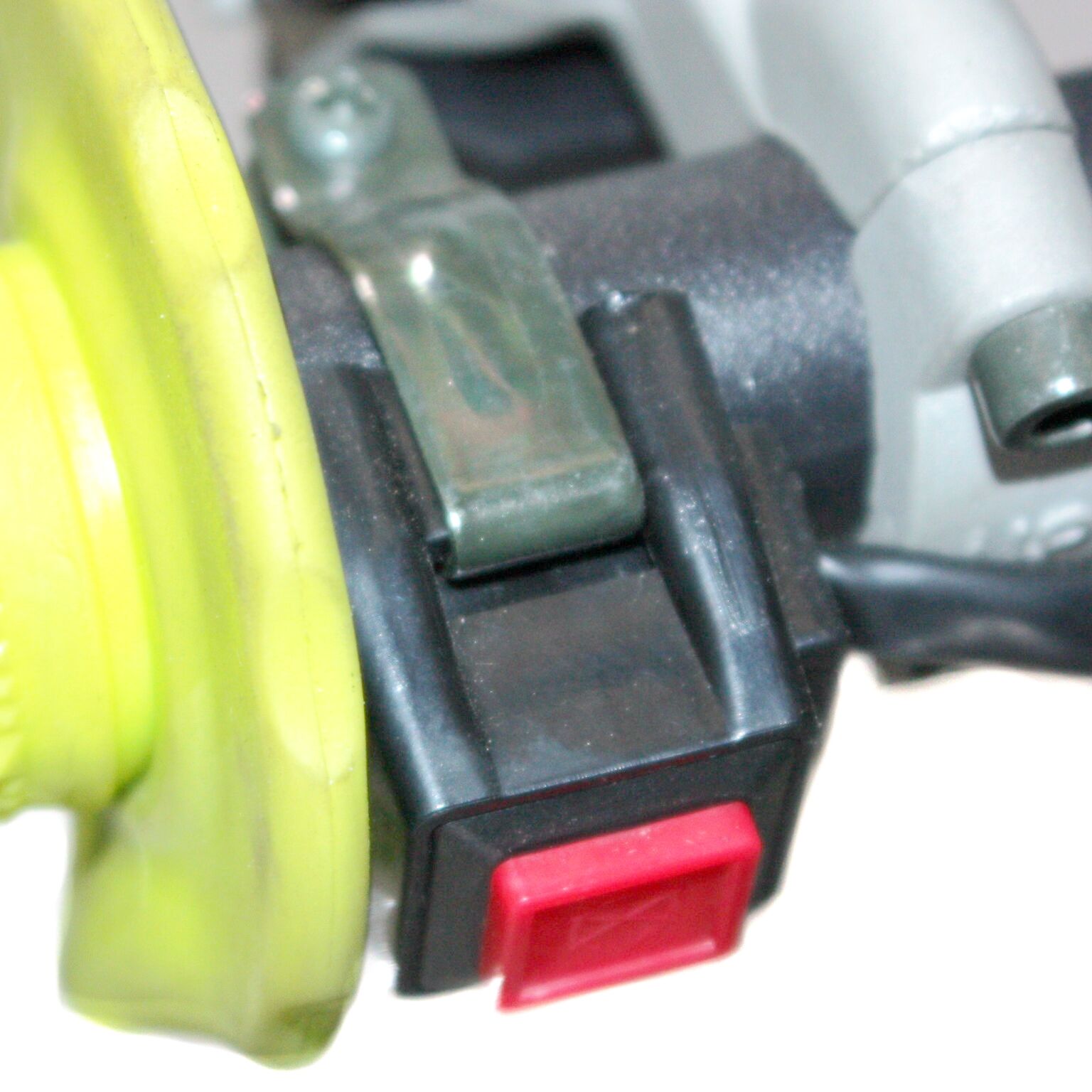

Start Type | Electric & Kick Start |
Ignition | CDI |
Drive Train | #420 Chain, FT: 14T/RR: 39T Sprocket |
PERFORMANCE | |

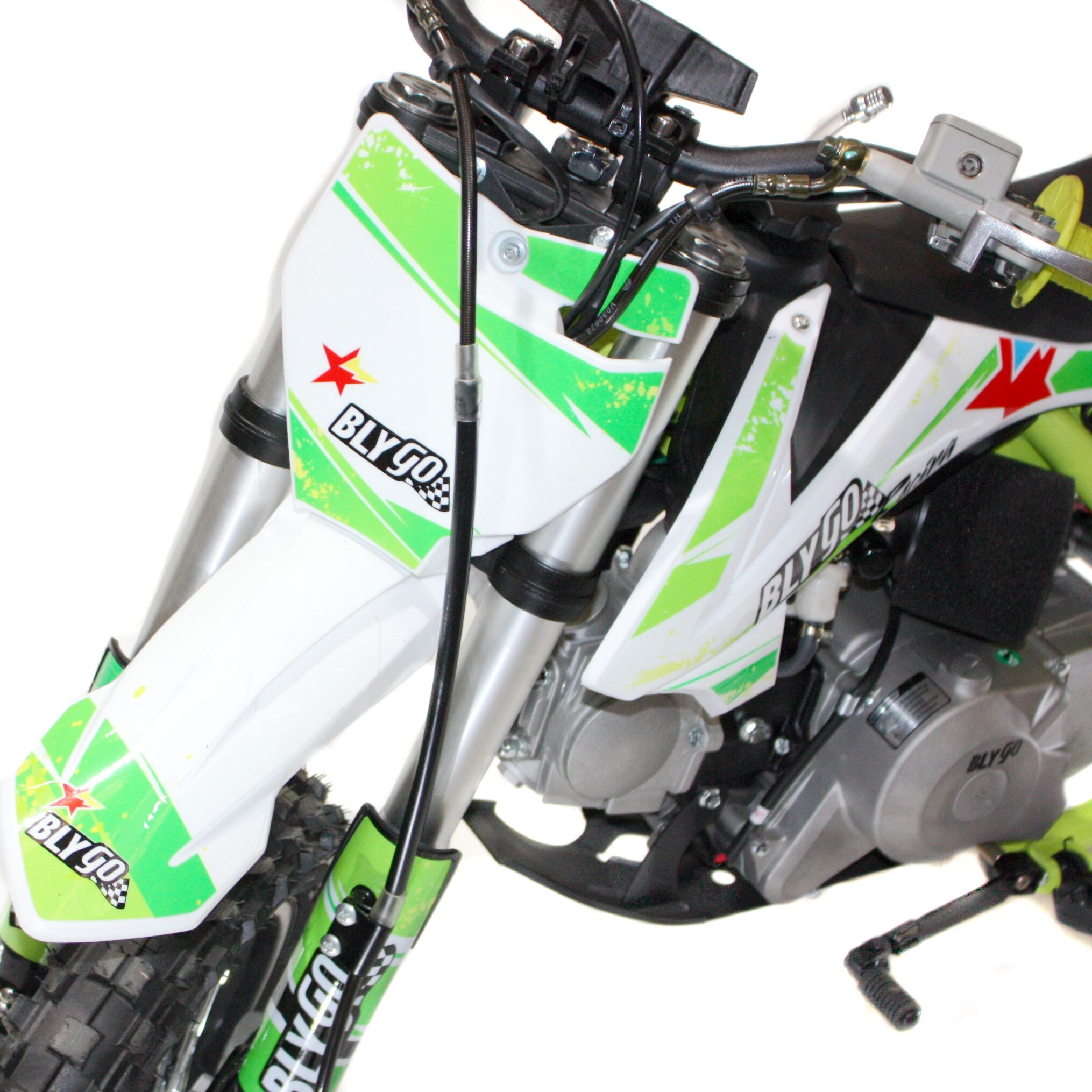

Front Fork | Φ39*Φ42-590mm Inverted Hydraulic Forks, 100mm Travel |
Rear Shock | 12*270mm None-Adjustable Shock, 50mm Travel |

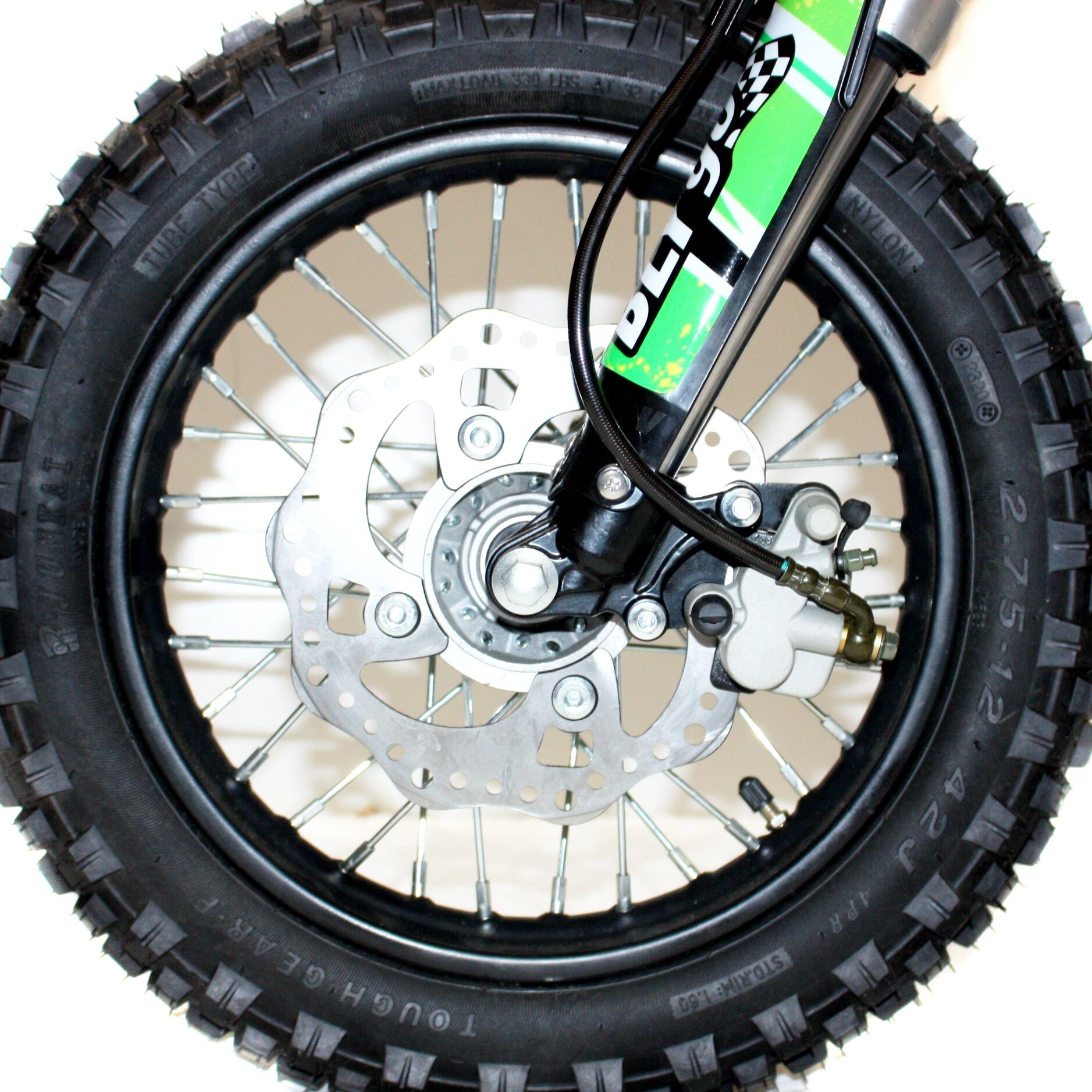

Front Wheel | Steel Rim, FT: 1.40 x 12 |

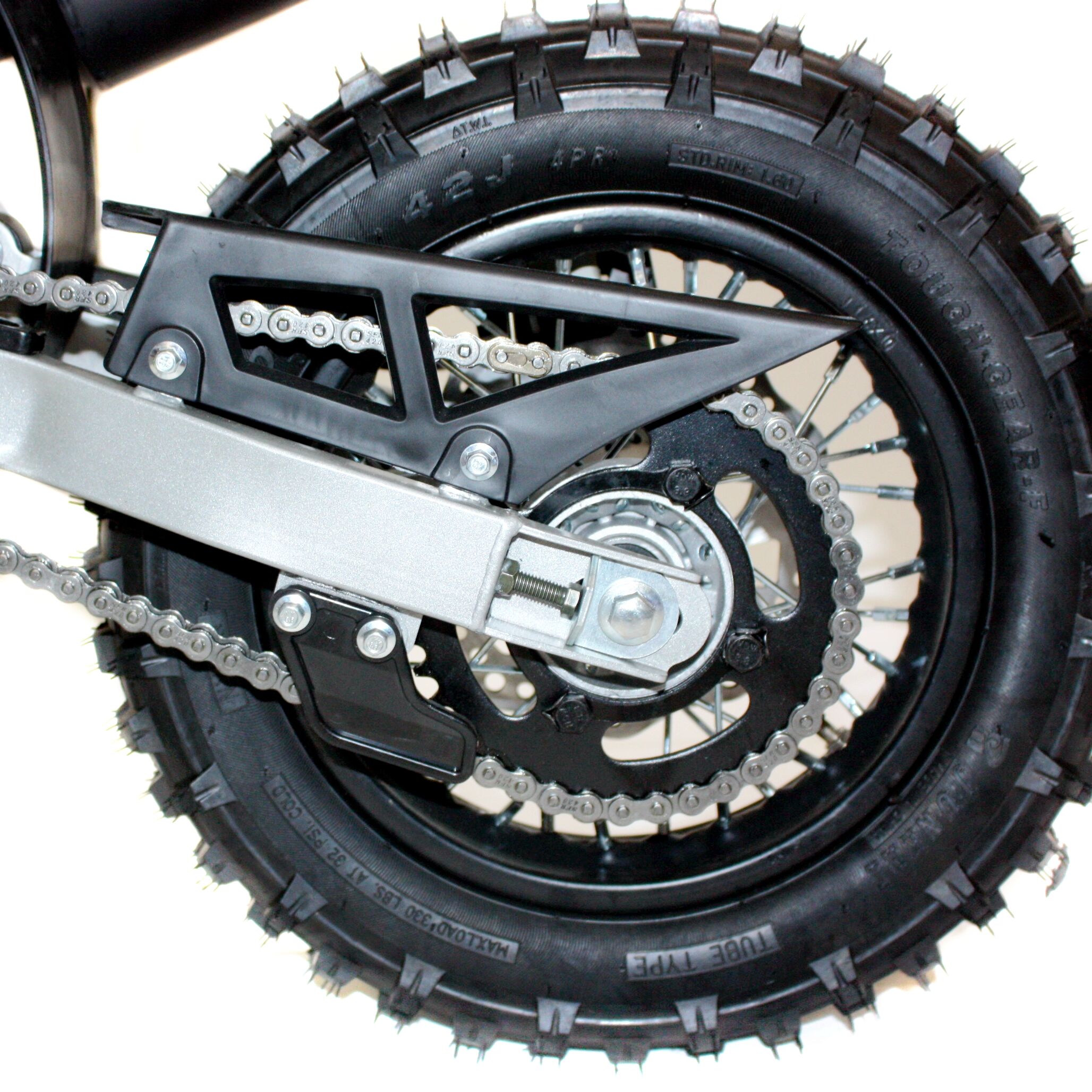

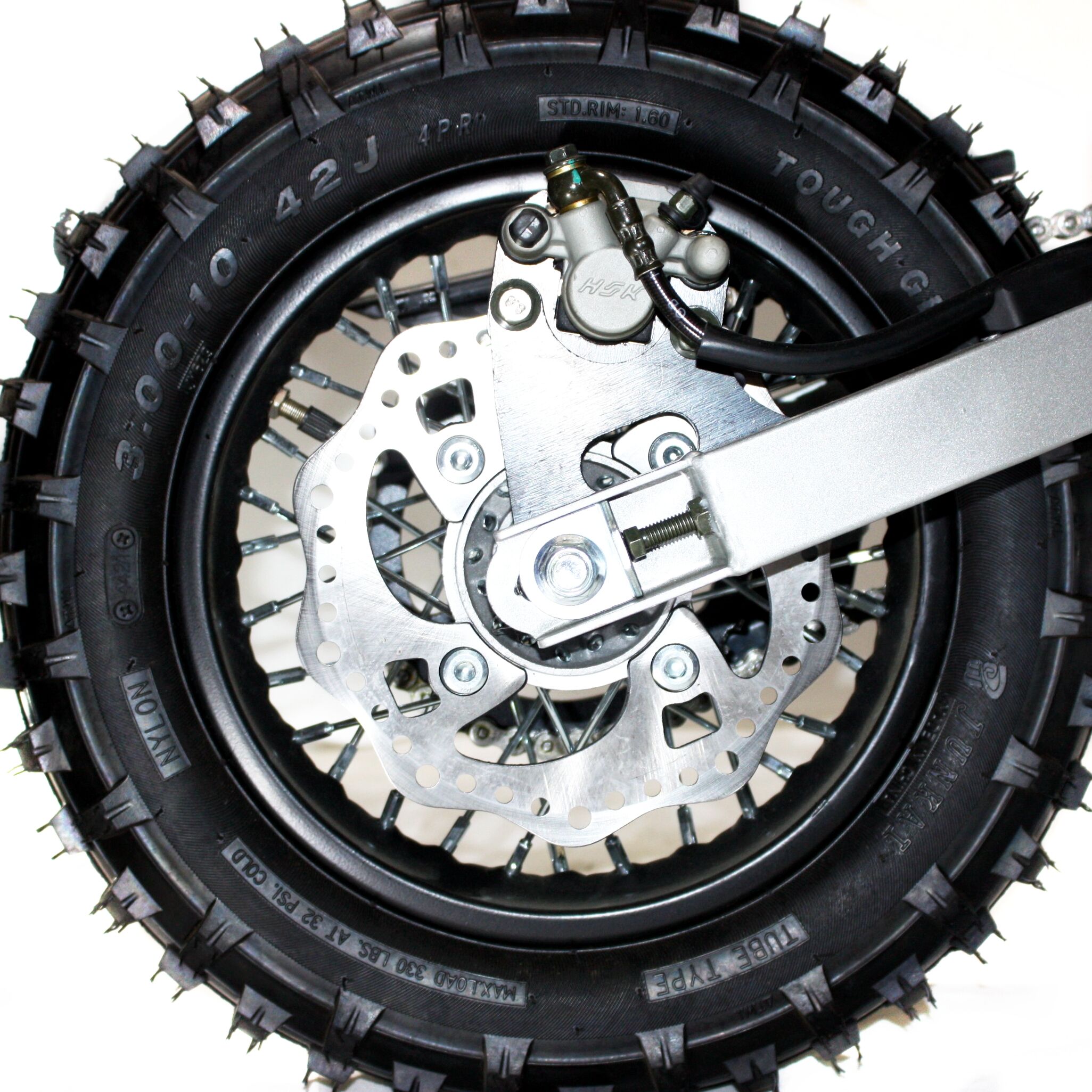

Rear Wheel | Steel Rim, RR: 1.60x 10 |
Front Tires | 2.75-12 |
Rear Tires | 3.00-10 |
Front Brake | Single Piston Caliper, 190mm Disc |
Rear Brake | Single Piston Caliper, 190mm Disc |

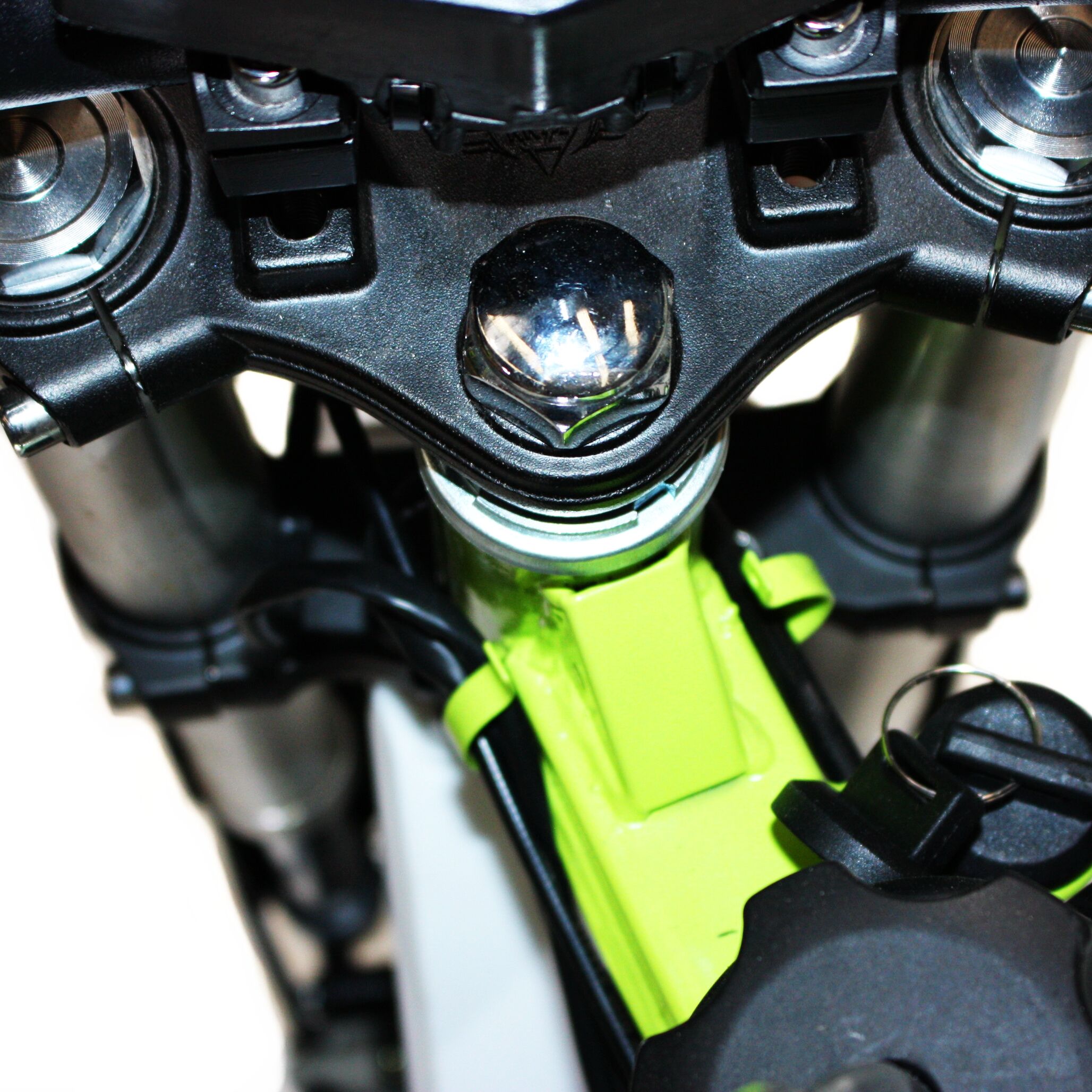

Triple Clamp | Die-casting aluminum |
DETAILS | |

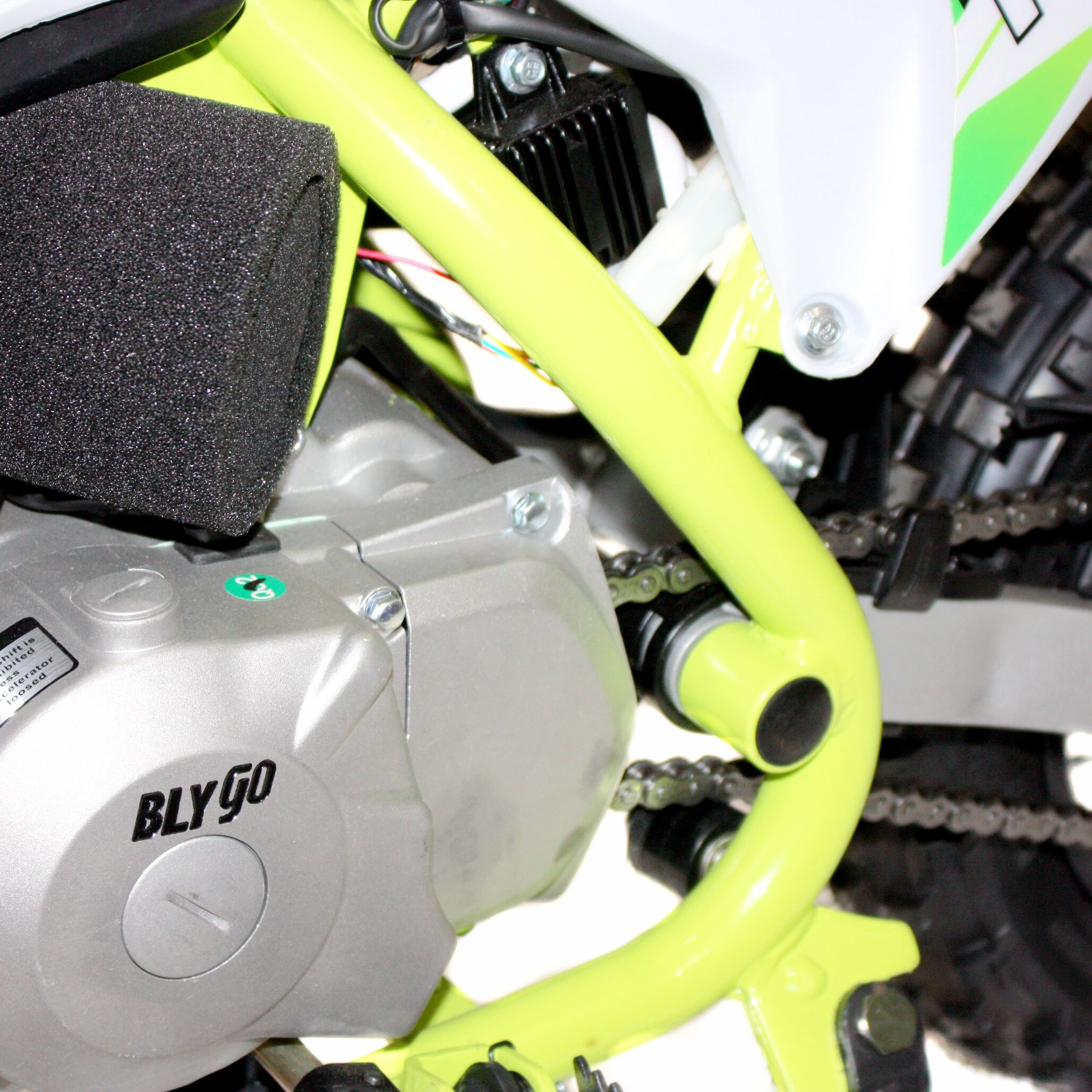

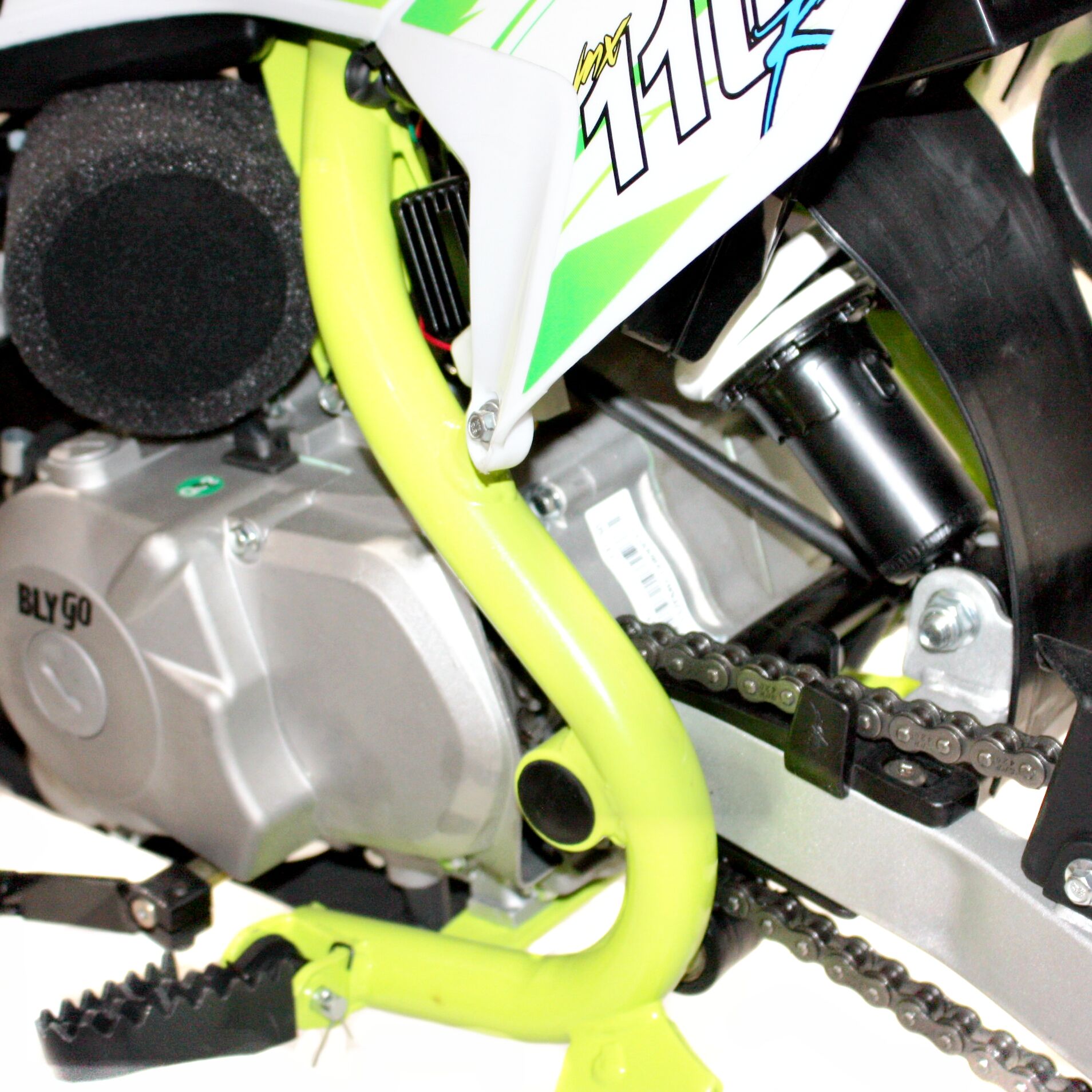

Frame | Cradle Type Steel Tube Frame |
Swing-Arm | Tube High Strength Steel Swingarm |

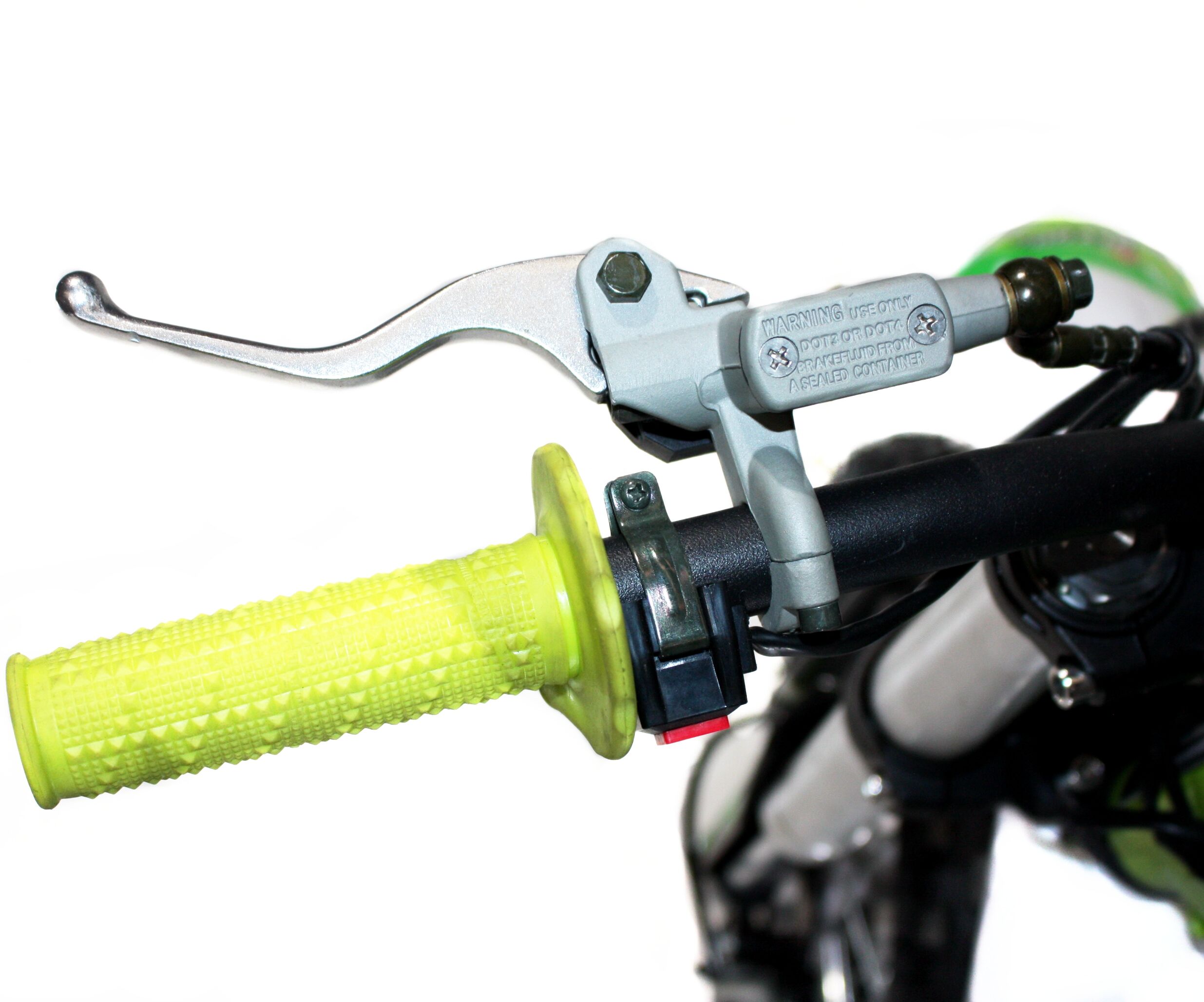

Handle Bar | Steel ¢22*620mm |
Overall Size | 1520*650*840mm |
Packing Size | 1255x335x615mm |
Wheel Base | 1015 mm |
Seat Height | 615mm |
Ground Clearance | 220mm |
Fuel Capacity | 2.2L / 0.58 Gal. |
N.W | 51KG |
G.W | 58KG |
