SPECIFICATONS | |
POWER | |

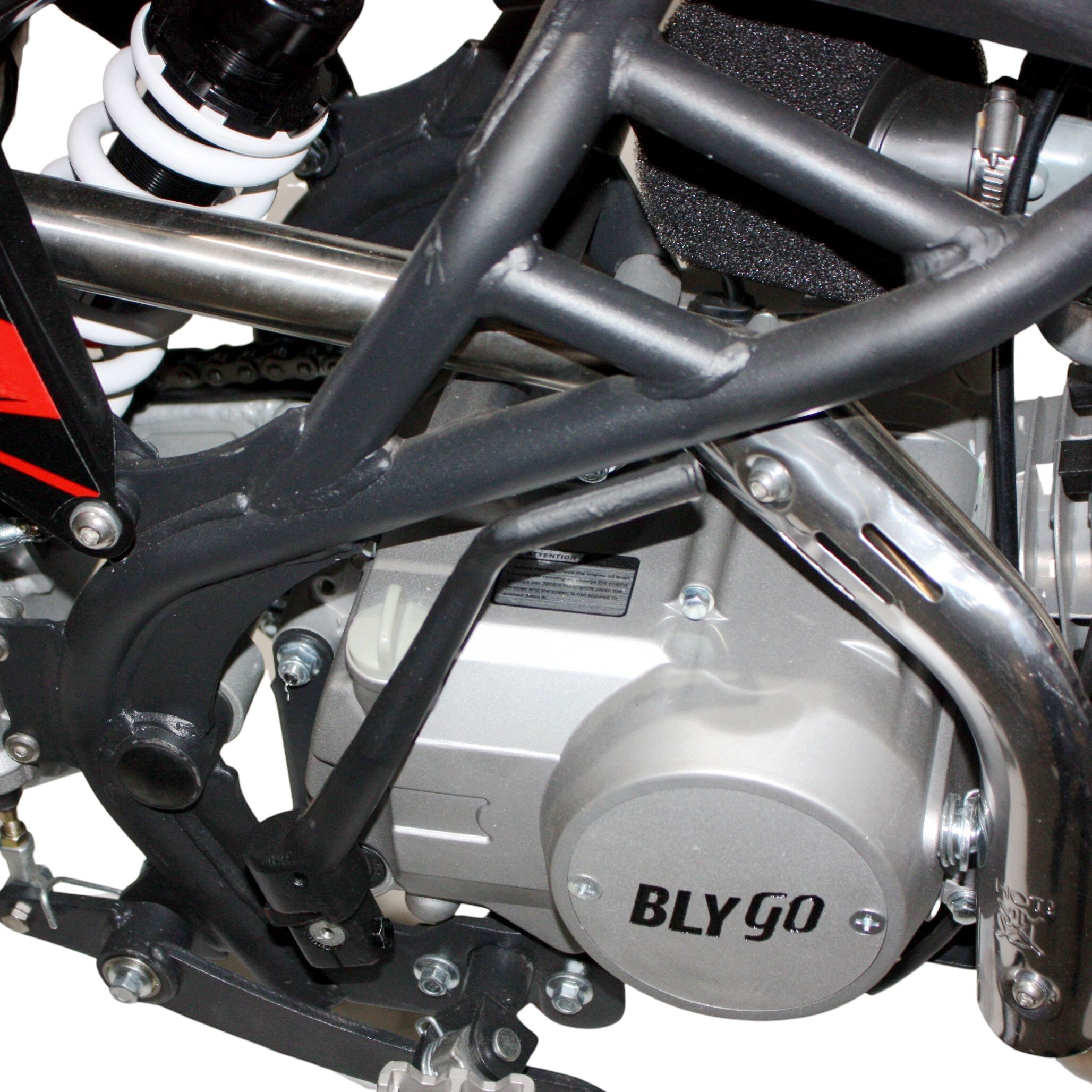

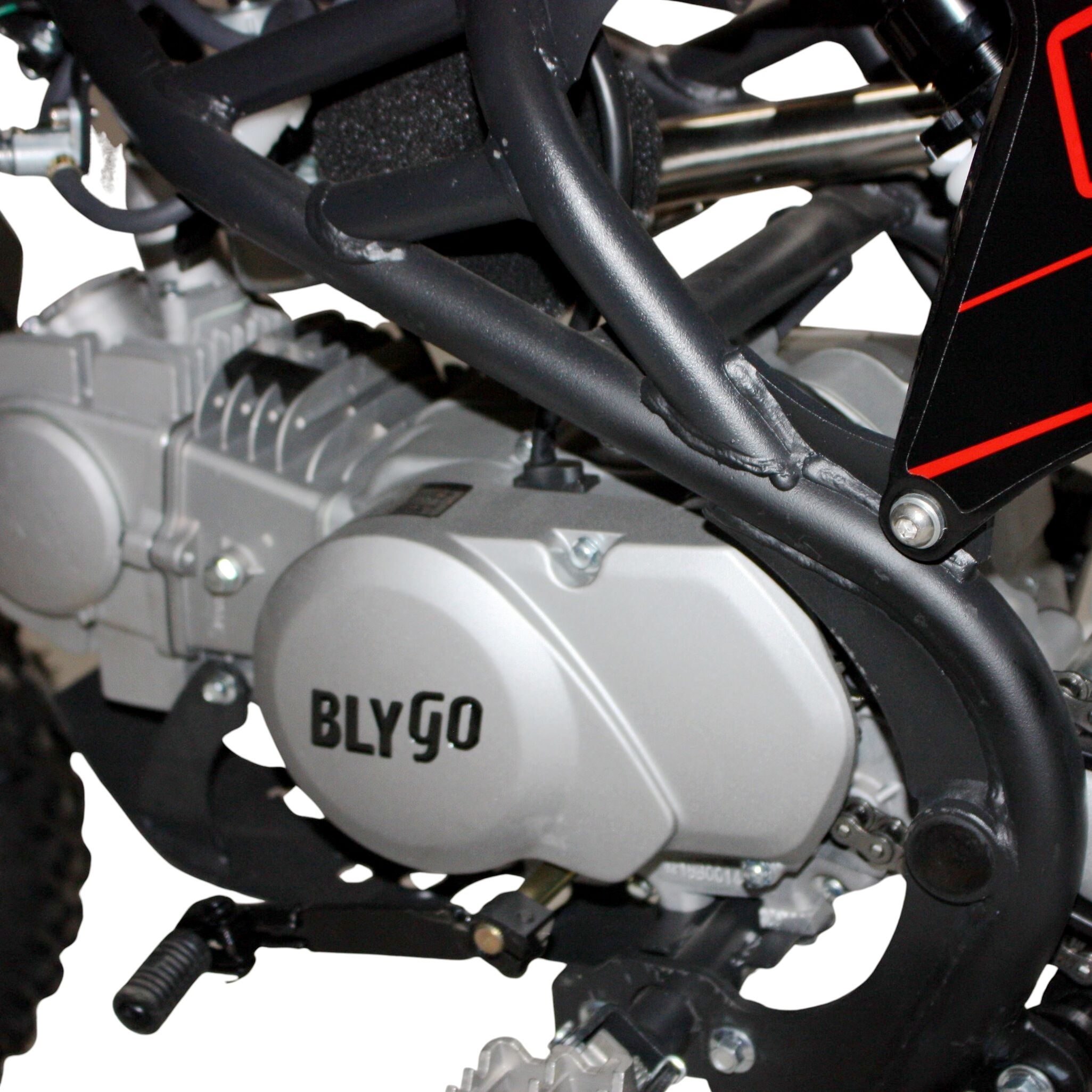

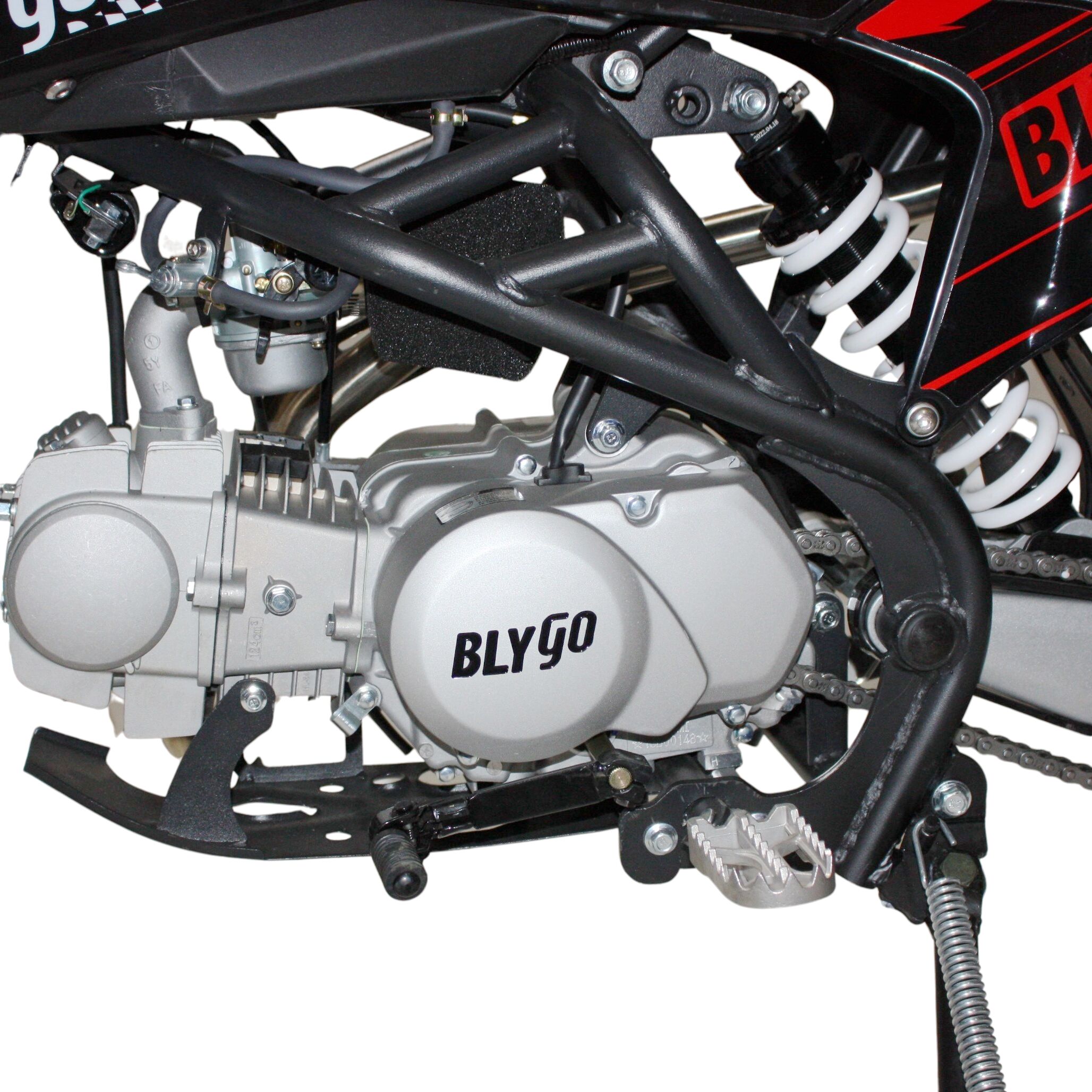

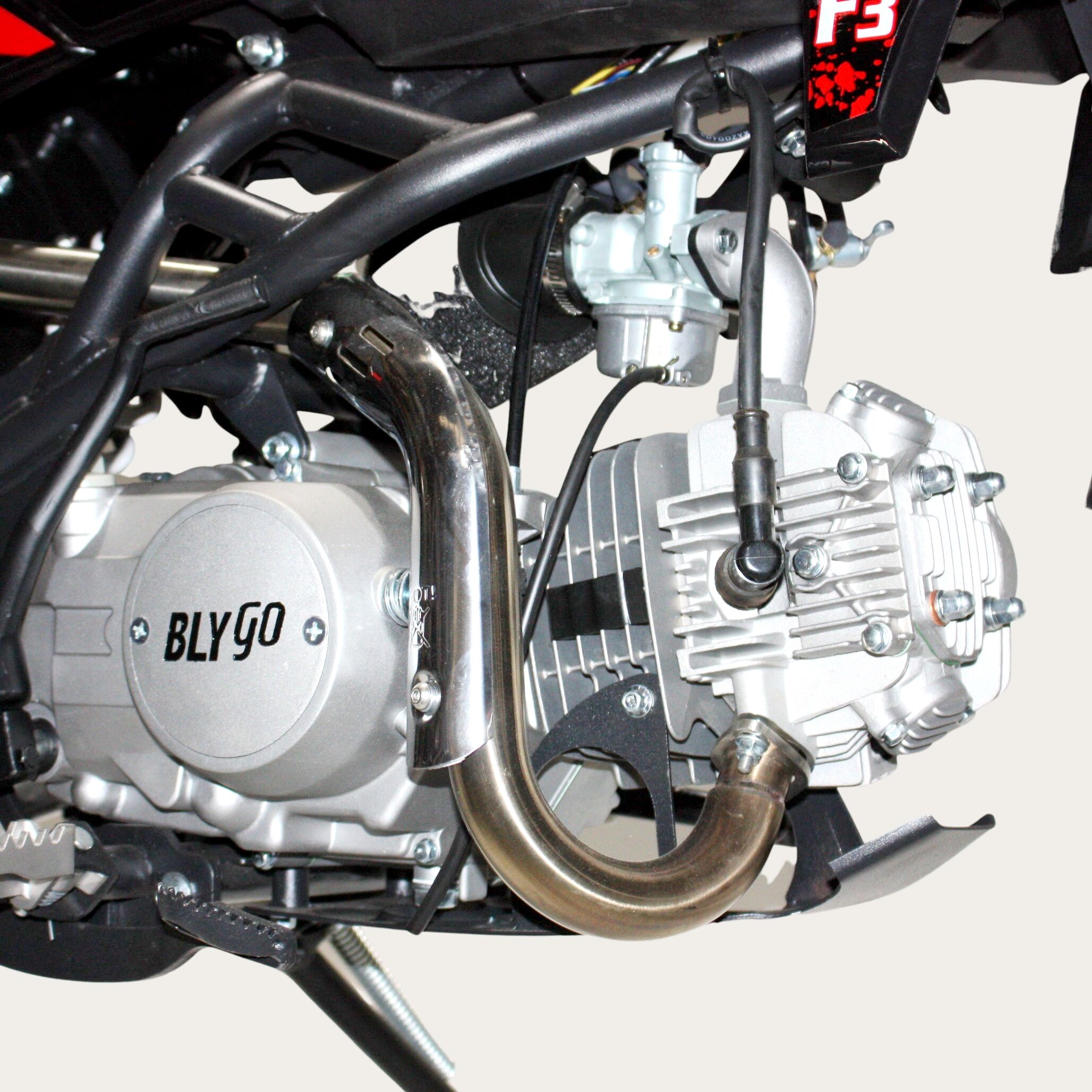

Engine Type | 125CC, Single Cylinder, 4-Stroke, Air Cooled |
Displacement | 124 ml |
Start Type | Kick Start, Manual Clutch, N-1-2-3-4 |
PERFORMANCE | |
Front Fork | Φ45*Φ48-735mm Inverted Hydraulic Forks, 120mm Travel |

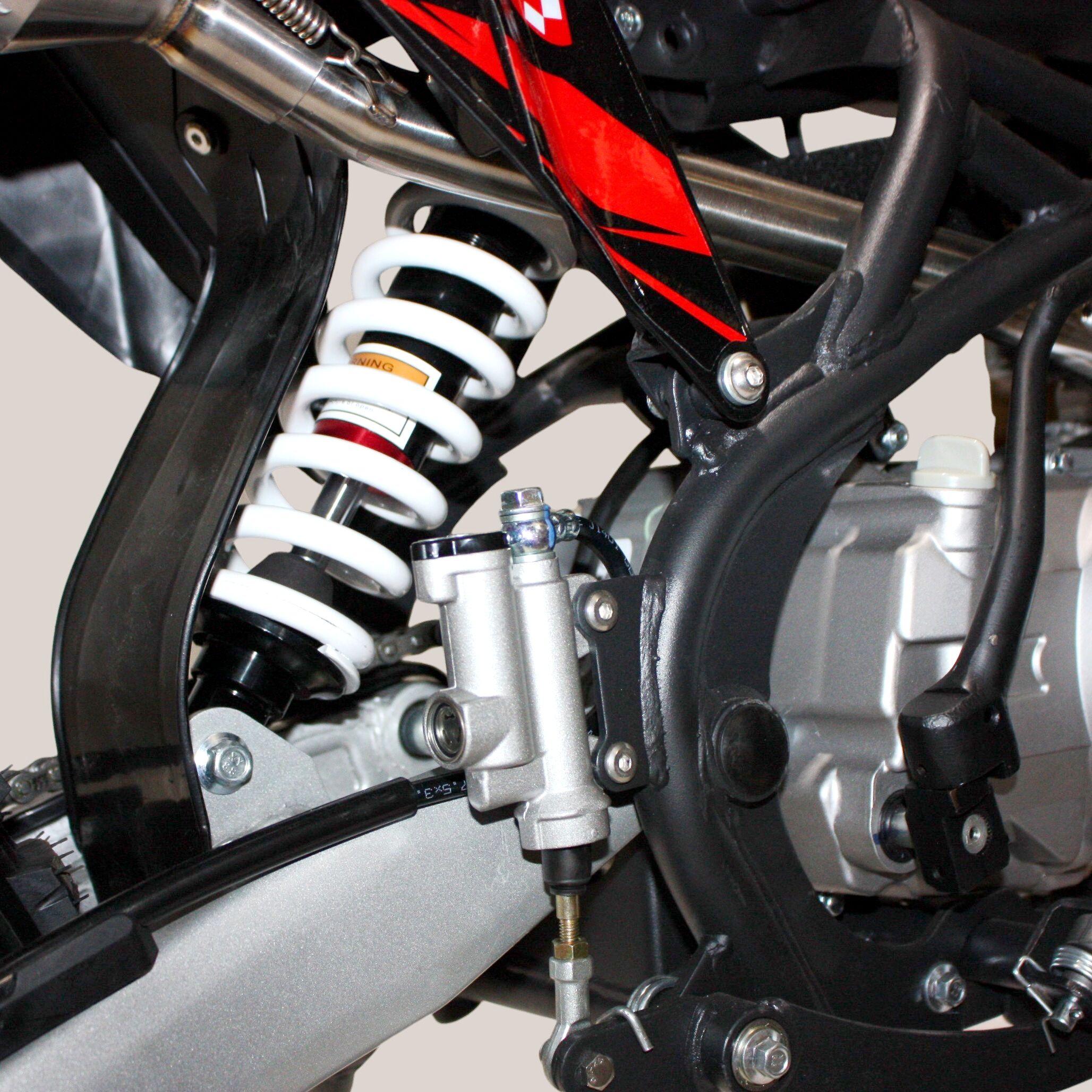

Rear Shock | 10*11*310mm None-Adjustable Shock, 80mm Travel |

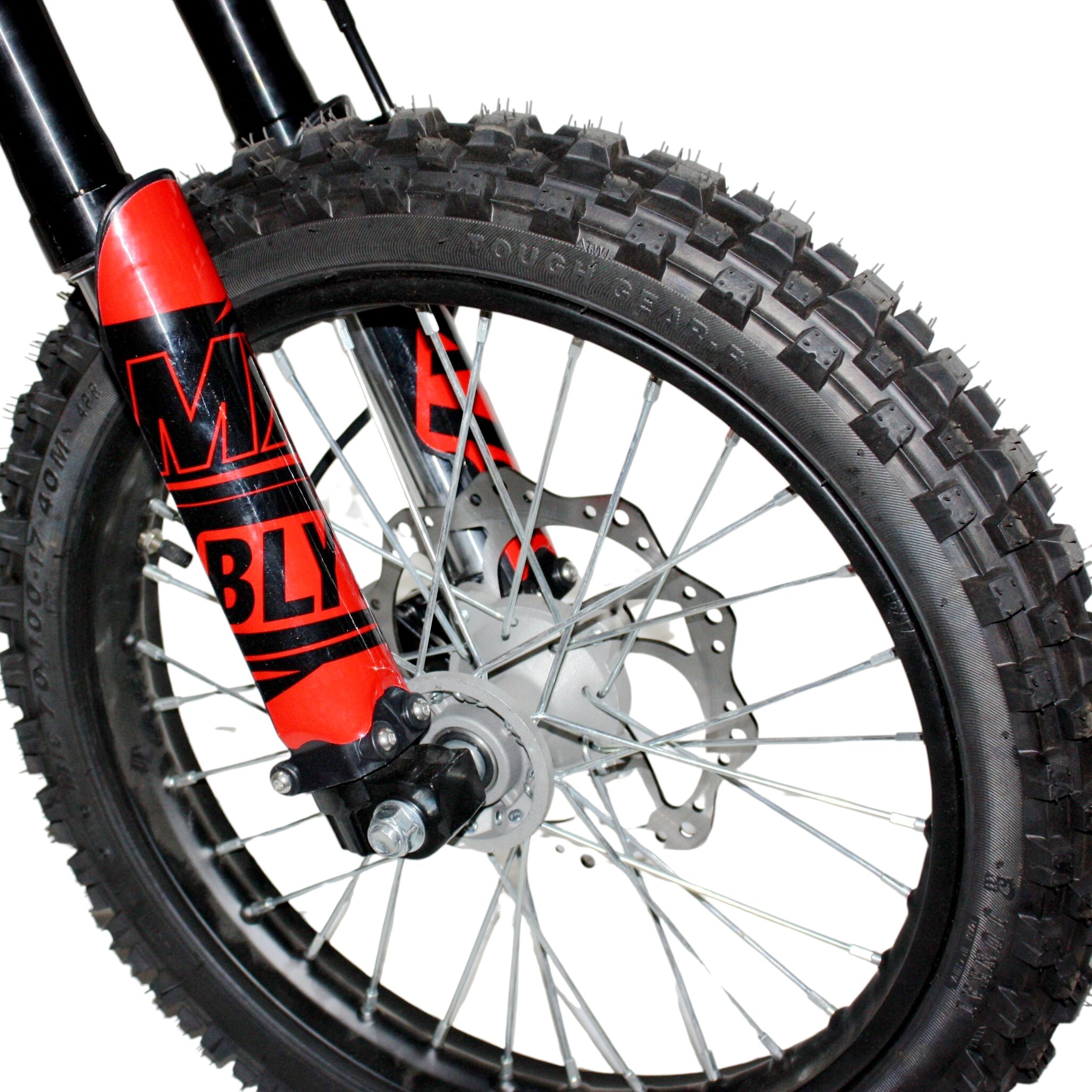

Front Wheel | Steel Rim, FT: 1.60 x 17 |

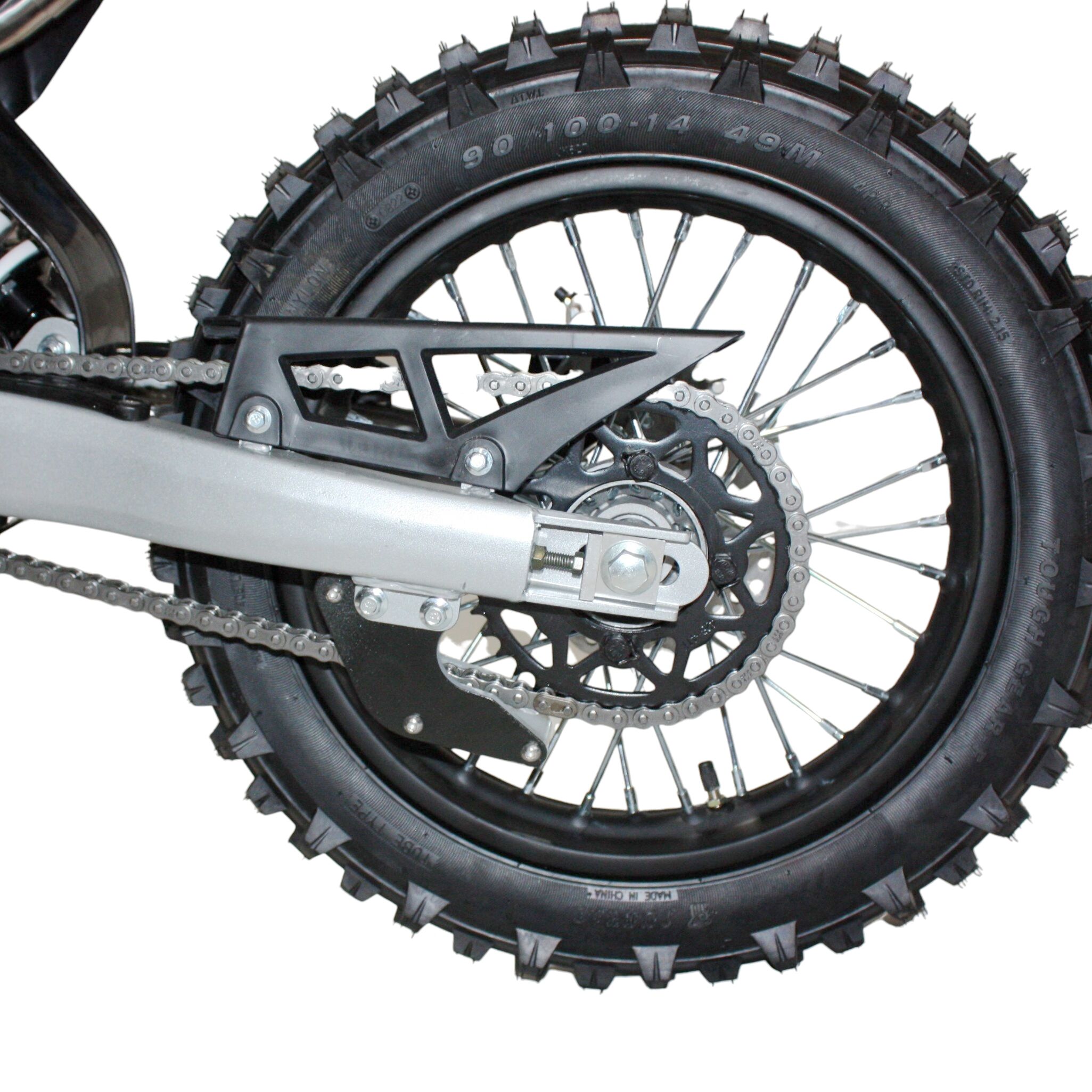

Rear Wheel | Steel Rim, RR: 1.85 x 14 |
Front Tires | 70/100-17 |
Rear Tires | 90/100-14 |

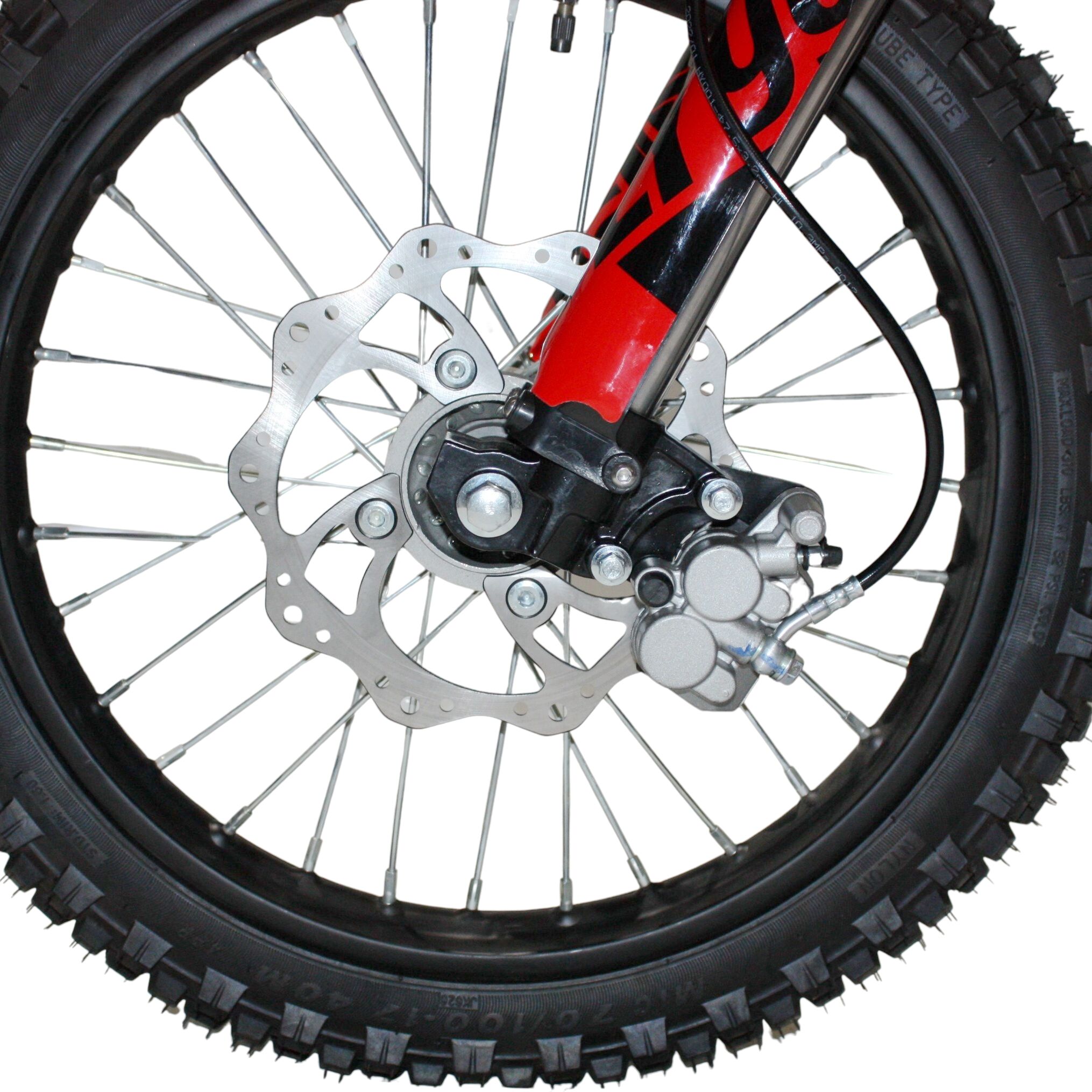

Front Brake | Dual Piston Caliper, 220mm Disc |

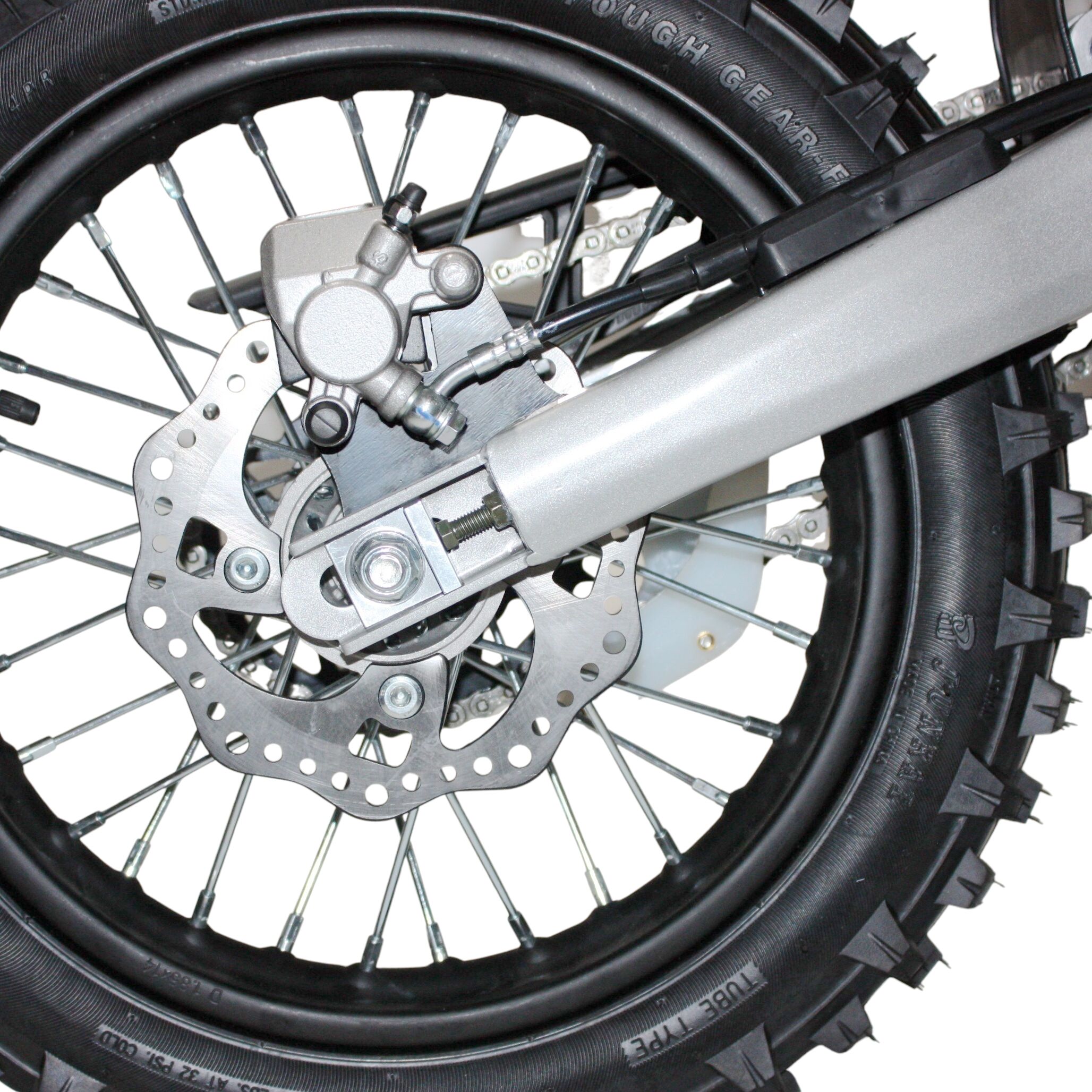

Rear Brake | Single Piston Caliper, 190mm Disc |

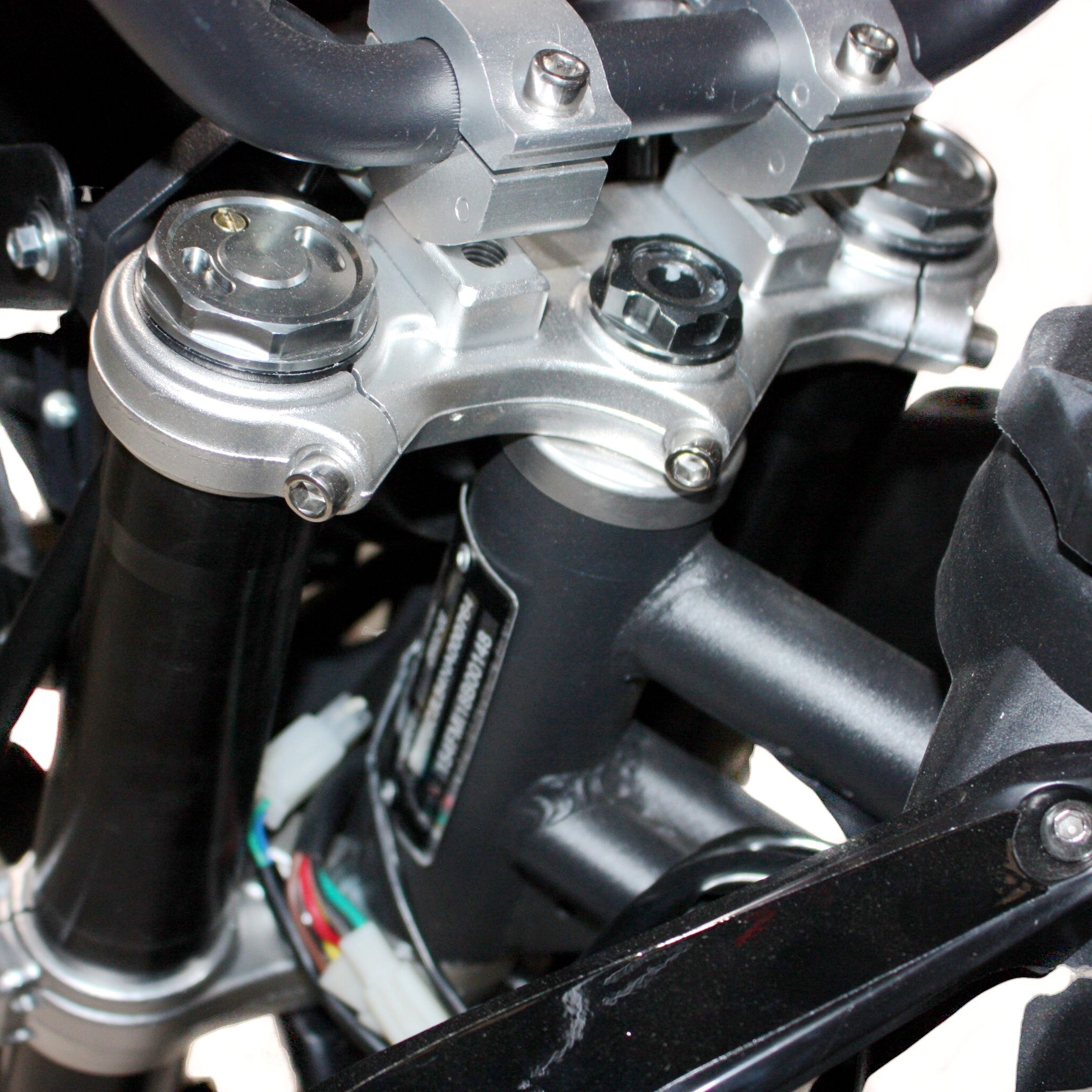

Triple Clamp | Forged aluminum |
DETAILS | |
Frame | Perimeter Triangle Girders Steel Frame |
Swing-Arm | Tube High Strength Steel Swingarm;L=320mm |

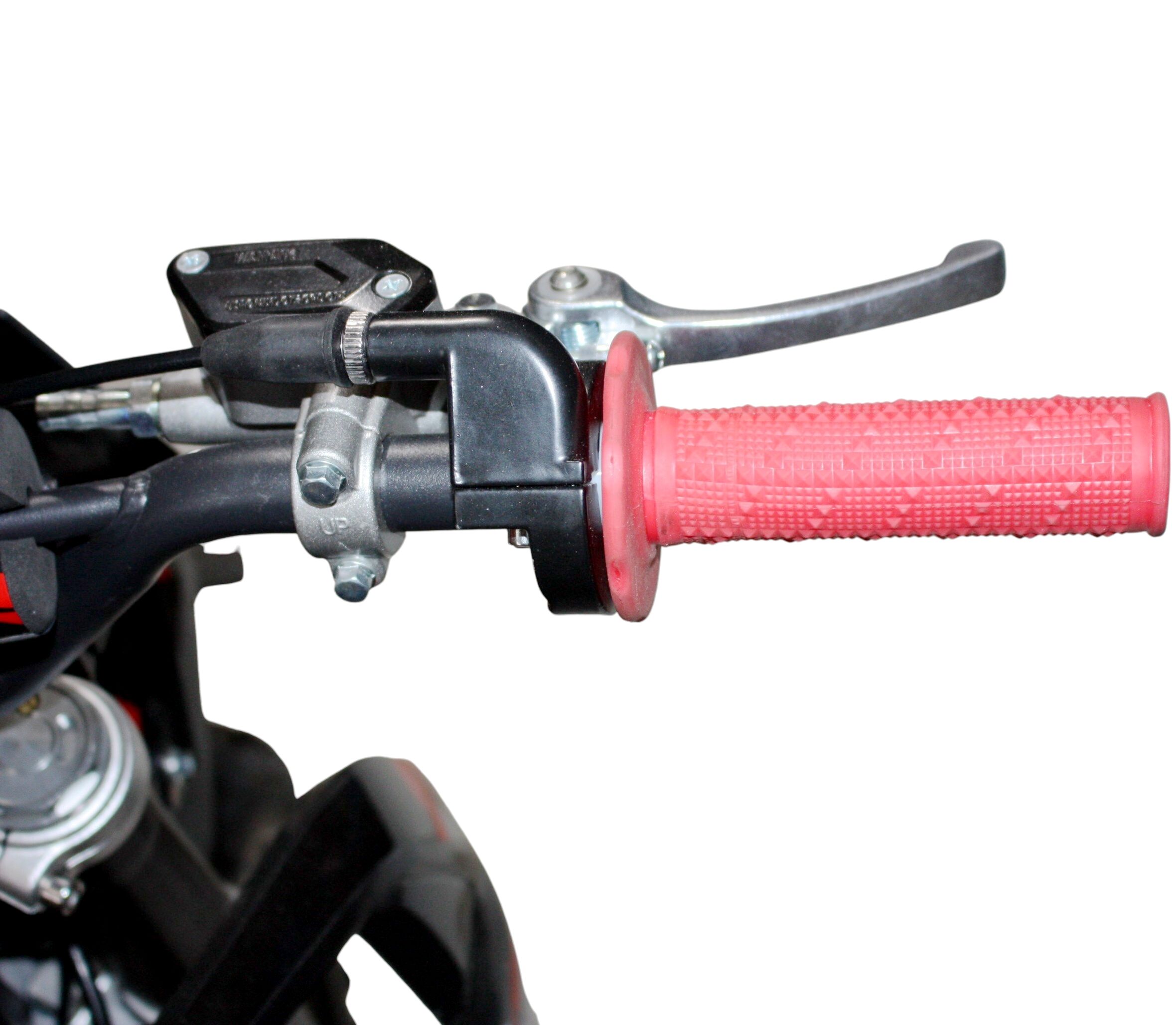

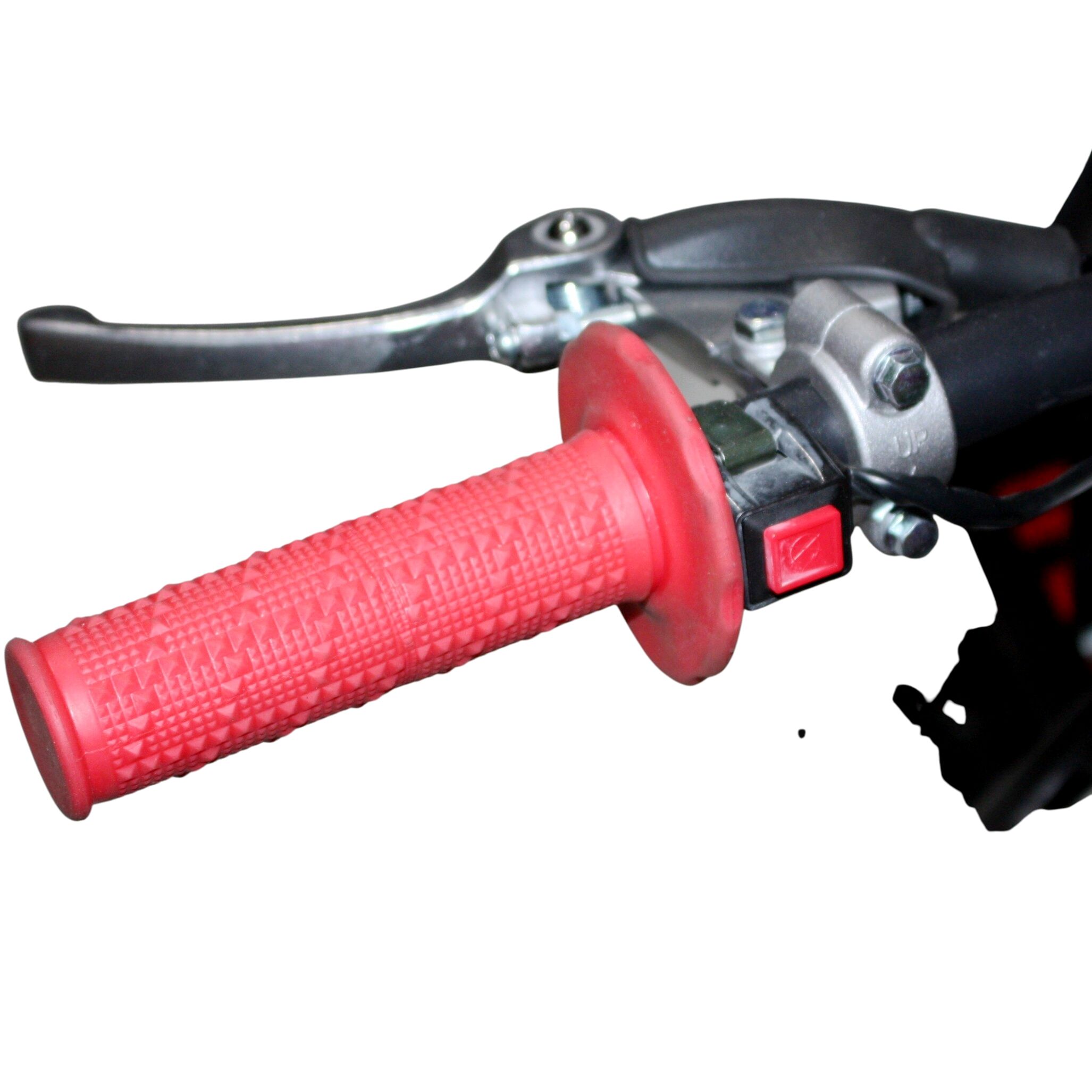

Handle Bar | Steel ¢22*720mm |
Overall Size | 1810x725x1100 mm |
Packing Size | 1590x375x760mm |
Wheel Base | 1265 mm |
Seat Height | 850 mm |
Ground Clearance | 330 mm |
Fuel Capacity | 4.5 L / 1.2 Gal. |
N.W | 65KG |
G.W | 78KG |
